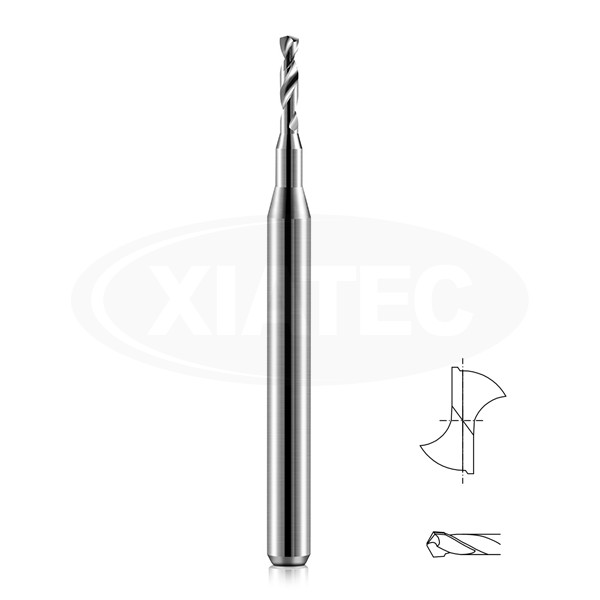

UC型-PHG系列
加工FR4、无卤素多层板
| 产品性能 |
| UC型小中径槽刀，高孔壁品质，加工多层板，无卤素，高tg等板材 |
 |
| 产品规格 |

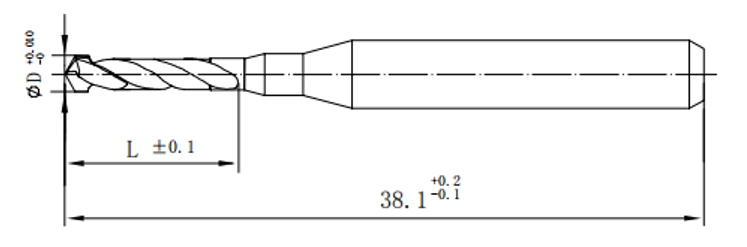

| 直径 | D (mm) | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.55 | 0.6 | 0.65 | 0.7 | 0.75 | 0.8 | 0.85 | 0.9 | 0.95 |
| 普通型 | L (mm) | 4 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| 合流沟型 | L (mm) | 4.5 | 4.5 | 5 | 5.5 | 5.5 | 6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 |
| 直径 | D (mm) | 1 | 1.05 | 1.1 | 1.15 | 1.2 | 1.25 | 1.3 | 1.35 | 1.4 | 1.45 | 1.5 | 1.55 | 1.6 | 1.65 |
| 普通型 | L (mm) | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| 合流沟型 | L (mm) | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 |
