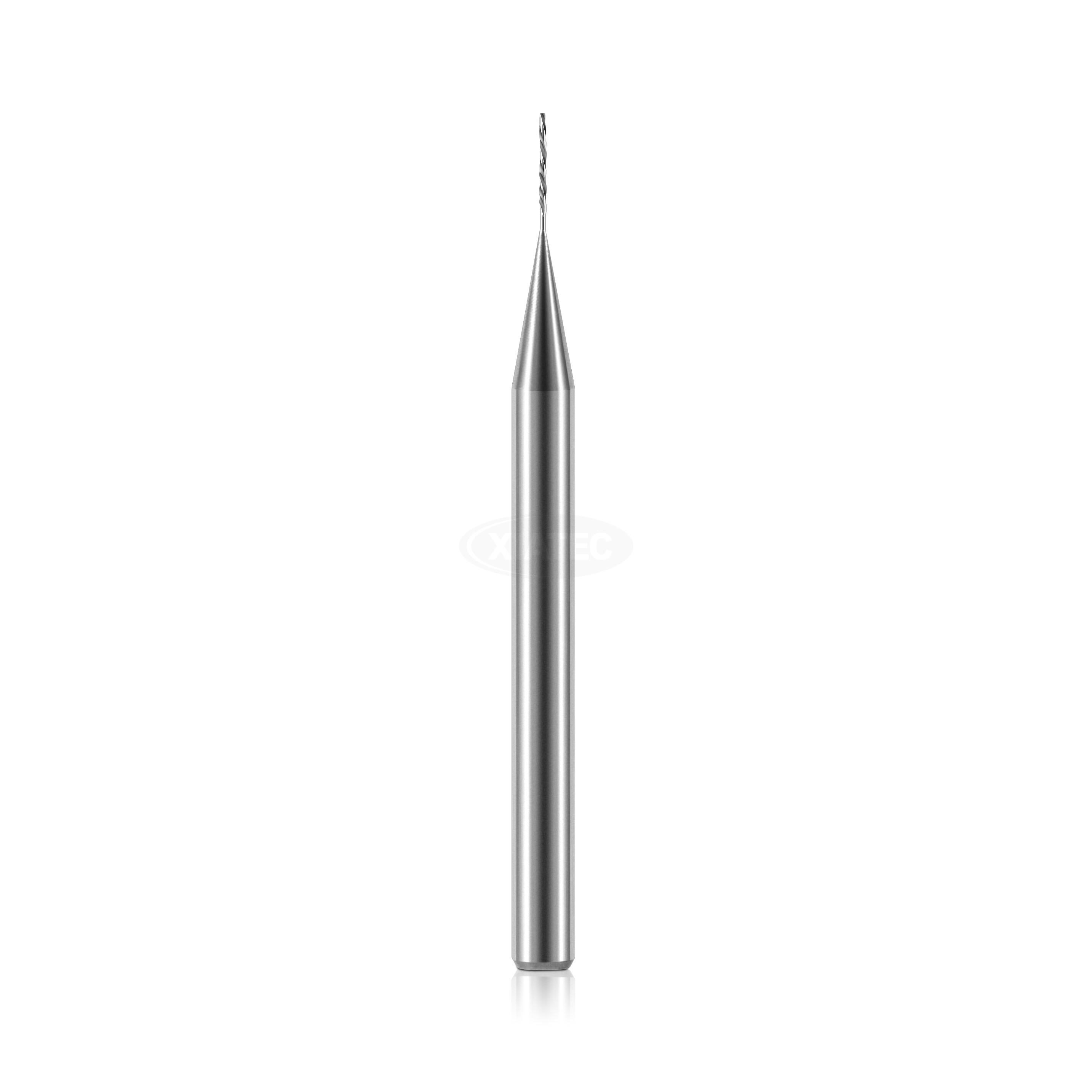

铰刀（右旋）
| 产品描述 |
1、右螺旋右切削刃 2、AlTiN涂层 3、适合加工不锈钢、碳钢材料 4、 采用进口超细颗粒母材 |
 |
| 产品规格 |
刃径公差:-0.005~-0.008（0.3≤D) -0.002~-0.005(D>0.3) 柄径公差:0~-0.006 单位:mm

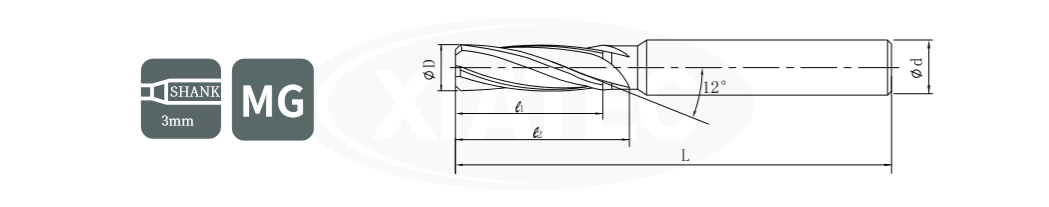

| 型号 | 刃径 ØD | 铰深 l1 | 槽长 l2 | 全长 L | 柄径 Ød |
| RMR-30-D0.2 | 0.2 | 3.5 | 4 | 38 | 3 |
| RMR-30-D0.25 | 0.25 | 3.5 | 4 | 38 | 3 |
| RMR-30-D0.3 | 0.3 | 3.5 | 4 | 38 | 3 |
| RMR-30-D0.35 | 0.35 | 3.5 | 4 | 38 | 3 |
| RMR-30-D0.4 | 3.5 | 3.5 | 4 | 38 | 3 |
| RMR-30-D0.45 | 0.45 | 3.5 | 5 | 38 | 3 |
| RMR-30-D0.5 | 0.5 | 4 | 5 | 38 | 3 |
| RMR-30-D0.55 | 0.55 | 4 | 6 | 38 | 3 |
| RMR-30-D0.6 | 0.6 | 6.5 | 6 | 38 | 3 |
| RMR-30-D0.65 | 0.65 | 6.5 | 8 | 38 | 3 |
| RMR-30-D0.7 | 0.7 | 6.5 | 8 | 38 | 3 |
| RMR-30-D0.75 | 0.75 | 6.5 | 8 | 38 | 3 |
| RMR-30-D0.8 | 0.8 | 6.5 | 8 | 38 | 3 |
| RMR-30-D0.85 | 0.85 | 8 | 10 | 38 | 3 |
| RMR-30-D0.9 | 0.9 | 8 | 10 | 38 | 3 |
| RMR-30-D0.95 | 0.95 | 8 | 10 | 38 | 3 |
| RMR-30-D1.0 | 1 | 8 | 10 | 38 | 3 |
| RMR-30-D1.1 | 1.1 | 12 | 14 | 50 | 3 |
| RMR-30-D1.2 | 1.2 | 12 | 14 | 50 | 3 |
| RMR-30-D1.3 | 1.3 | 12 | 14 | 50 | 3 |
| RMR-30-D1.4 | 1.4 | 12 | 14 | 50 | 3 |
| RMR-30-D1.5 | 1.5 | 15 | 17 | 50 | 3 |
| RMR-30-D1.6 | 1.6 | 15 | 17 | 50 | 3 |
| RMR-30-D1.7 | 1.7 | 15 | 17 | 50 | 3 |
| RMR-30-D1.8 | 1.8 | 15 | 17 | 50 | 3 |
| RMR-30-D1.9 | 1.9 | 15 | 17 | 50 | 3 |
| RMR-30-D2.0 | 2 | 20 | 22 | 50 | 3 |
| RMR-30-D2.1 | 2.1 | 20 | 22 | 50 | 3 |
| RMR-30-D2.2 | 2.2 | 20 | 22 | 50 | 3 |
| RMR-30-D2.3 | 2.3 | 20 | 22 | 50 | 3 |
| RMR-30-D2.4 | 2.4 | 20 | 22 | 50 | 3 |
| RMR-30-D2.5 | 2.5 | 25 | 27 | 60 | 3 |
| RMR-30-D2.6 | 2.6 | 25 | 27 | 60 | 3 |
| RMR-30-D2.7 | 2.7 | 25 | 27 | 60 | 3 |
| RMR-30-D2.8 | 2.8 | 25 | 27 | 60 | 3 |
| RMR-30-D2.9 | 2.9 | 25 | 27 | 60 | 3 |
| RMR-30-D3.0 | 3 | 25 | 27 | 60 | 3 |
