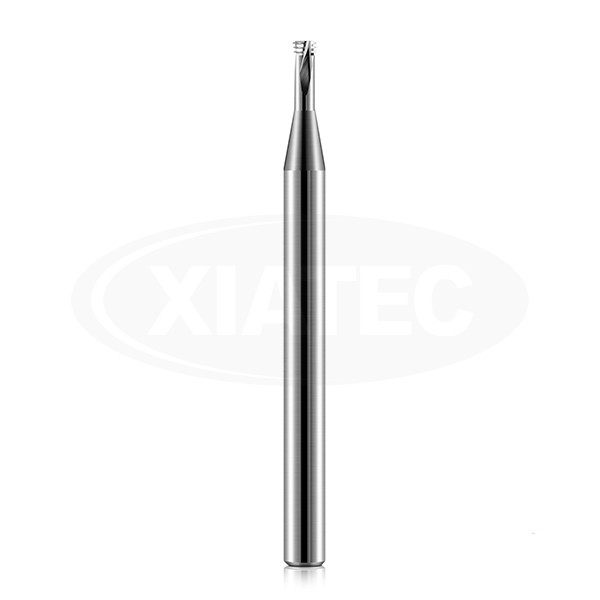

不锈钢加工三刃螺纹铣刀
| 产品性能 |
| 三刃型螺纹铣刀我们提供左旋右切和右旋右切两种款式，右旋通用性好，适用于一般的螺纹铣削加工，一次成型。左旋型因加工刚性足，故专用于高精度螺纹铣削加工。 |
 |
| 产品规格 |

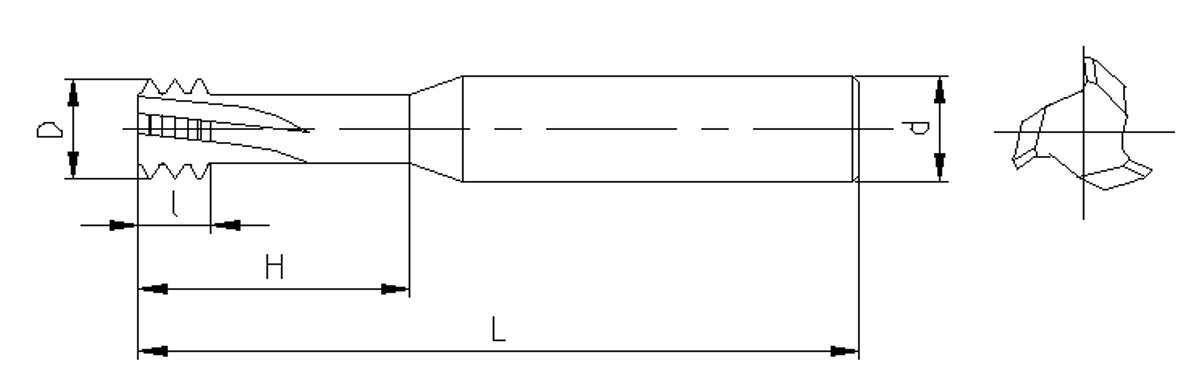

| 订货号 | 规格 SIZE | |||||
| Order No. | D | d(h6) | l | H | L | 刃数Flute |
| MTM-3T-M1*0.25 | 0.72 | 4 | 0.5 | 3 | 50 | 3 |
| MTM-3T-M1.2*0.25 | 0.92 | 4 | 0.5 | 3 | 50 | 3 |
| MTM-3T-M1.4*0.25 | 1.1 | 4 | 0.5 | 3 | 50 | 3 |
| MTM-3T-M1.4*0.3 | 1.05 | 4 | 0.6 | 4 | 50 | 3 |
| MTM-3T-M1.6*0.35 | 1.2 | 4 | 0.7 | 4 | 50 | 3 |
| MTM-3T-M2*0.4 | 1.55 | 4 | 0.8 | 4 | 50 | 3 |
| MTM-3T-M2.5*0.45 | 2 | 4 | 0.9 | 5 | 50 | 3 |
| MTM-3T-M3*0.5 | 2.4 | 4 | 1 | 6 | 50 | 3 |
| MTM-3T-M4*0.7 | 3.16 | 4 | 1.4 | 8 | 50 | 3 |
| MTM-3T-M5*0.8 | 3.04 | 6 | 1.6 | 10 | 50 | 3 |
| MTM-3T-M6*1 | 4.8 | 6 | 2 | 12 | 50 | 3 |
