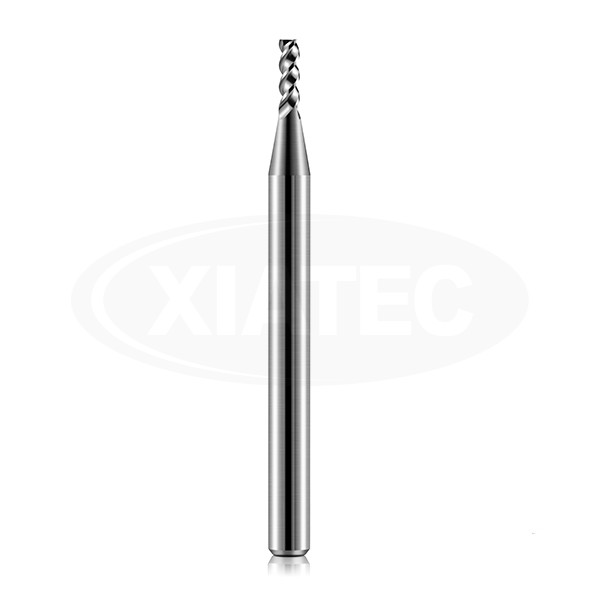

铜铝合金通用三刃立铣刀
| 产品性能 |
| 刀具兼备锋利和强度，适用于铝合金、铜合金等有色金属的开粗和精修，也适用于塑胶等塑性材料的加工。 |
 |
| 产品规格 |
| 订货号 | 规格 SIZE | |||||
| Order No. | D | d(h6) | H | L | 刃数Flutes | 刃径公差 |
| AG-3T-D1.0 | 1 | 4 | 3 | 50 | 3 | -0.005~-0.020 |
| AG-3T-D1.5 | 1.5 | 4 | 4.5 | 50 | 3 | -0.005~-0.020 |
| AG-3T-D2.0 | 2 | 4 | 6 | 50 | 3 | -0.005~-0.020 |
| AG-3T-D2.5 | 2.5 | 4 | 7.5 | 50 | 3 | -0.005~-0.020 |
| AG-3T-D3.0 | 3 | 4 | 9 | 50 | 3 | -0.005~-0.020 |
| AG-3T-D4.0 | 4 | 4 | 12 | 50 | 3 | -0.005~-0.020 |
